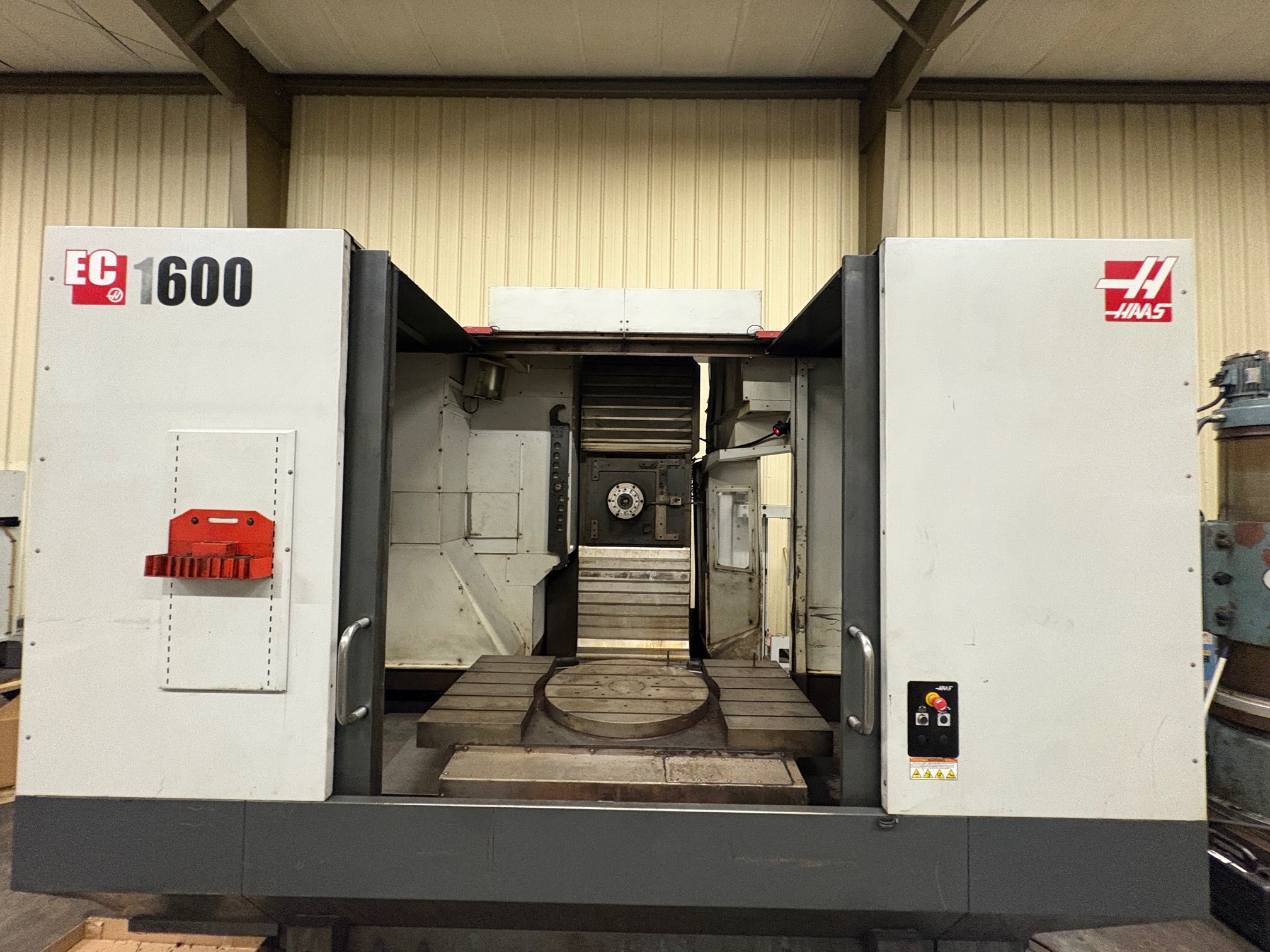

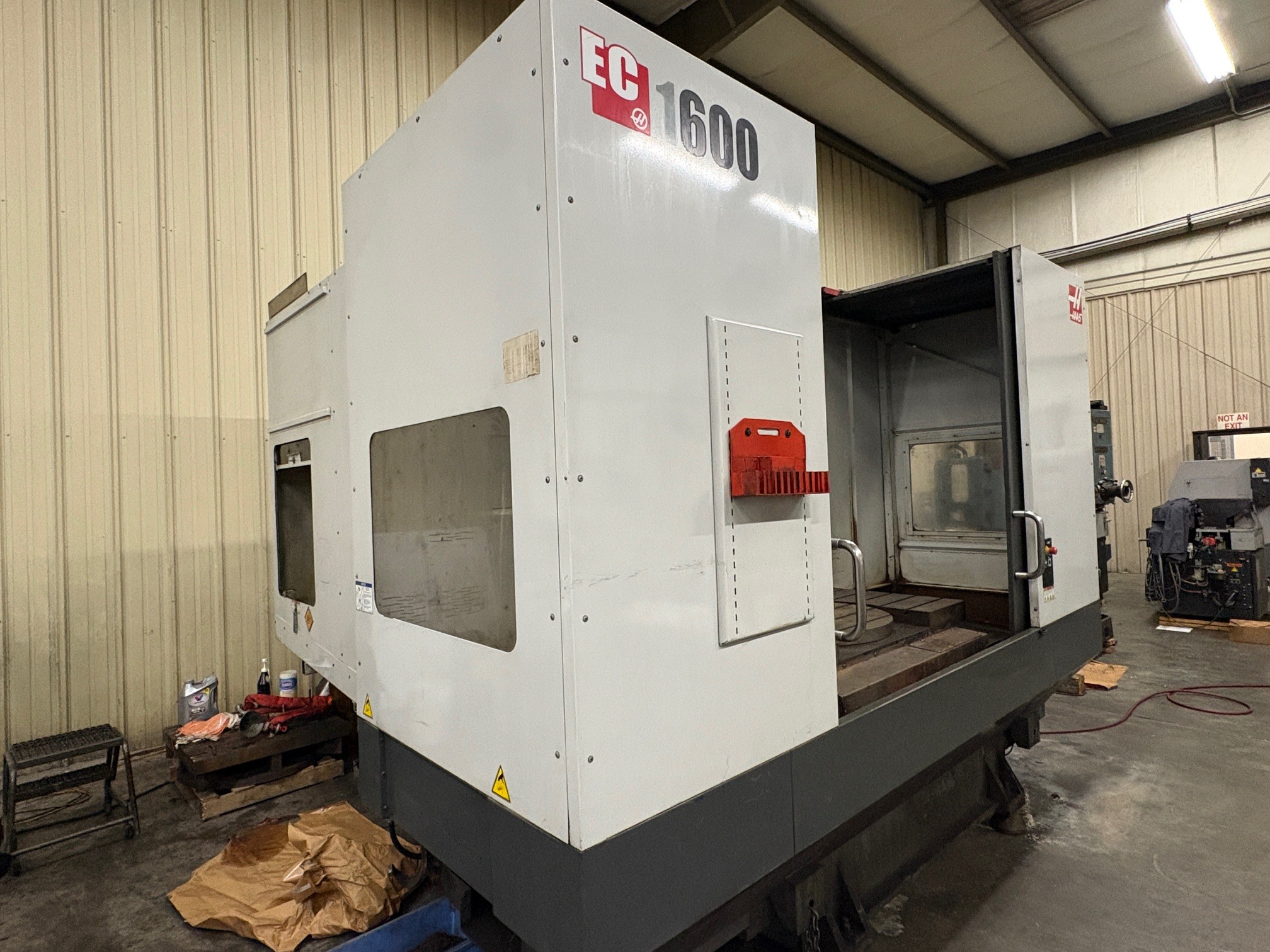

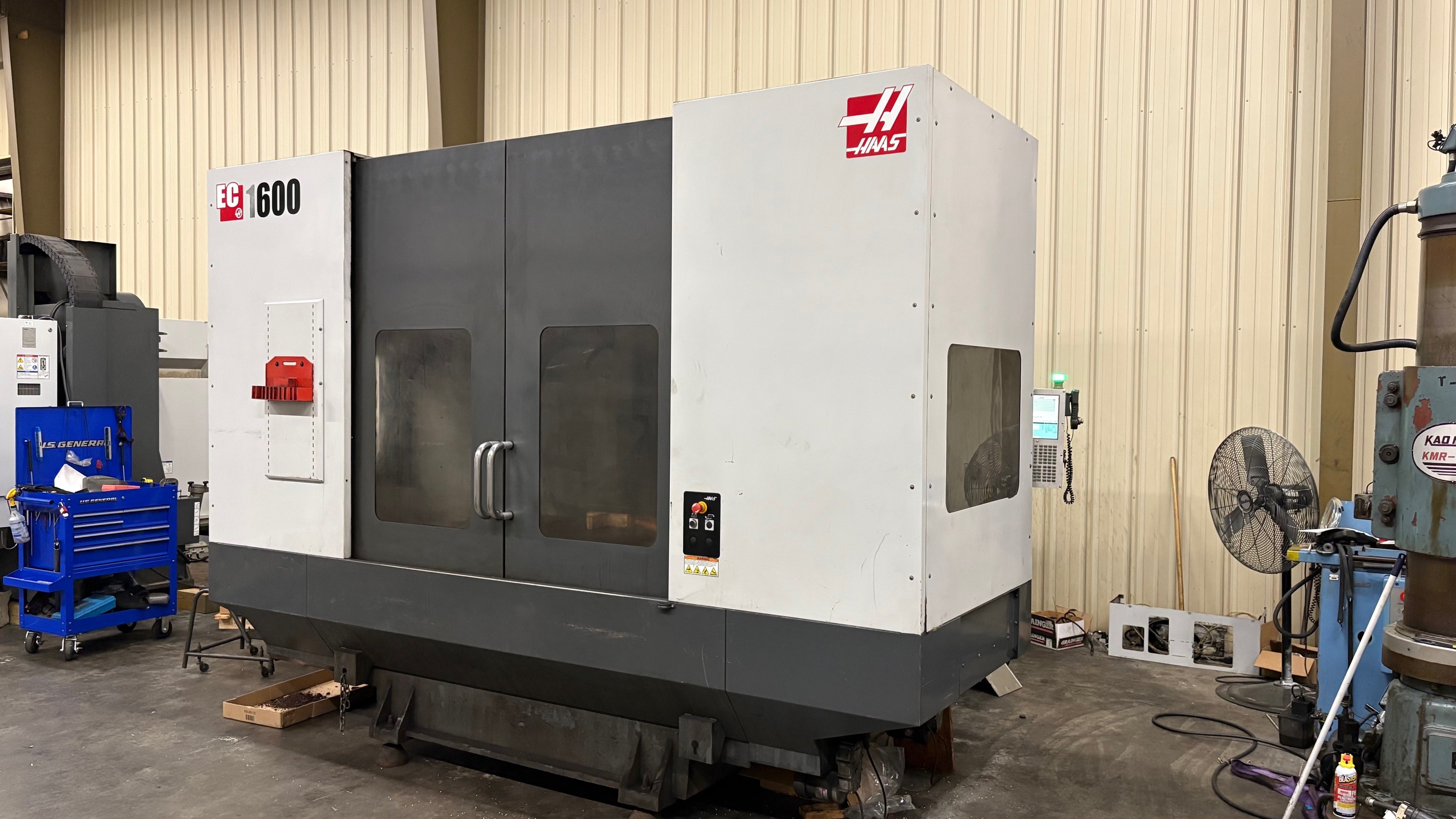

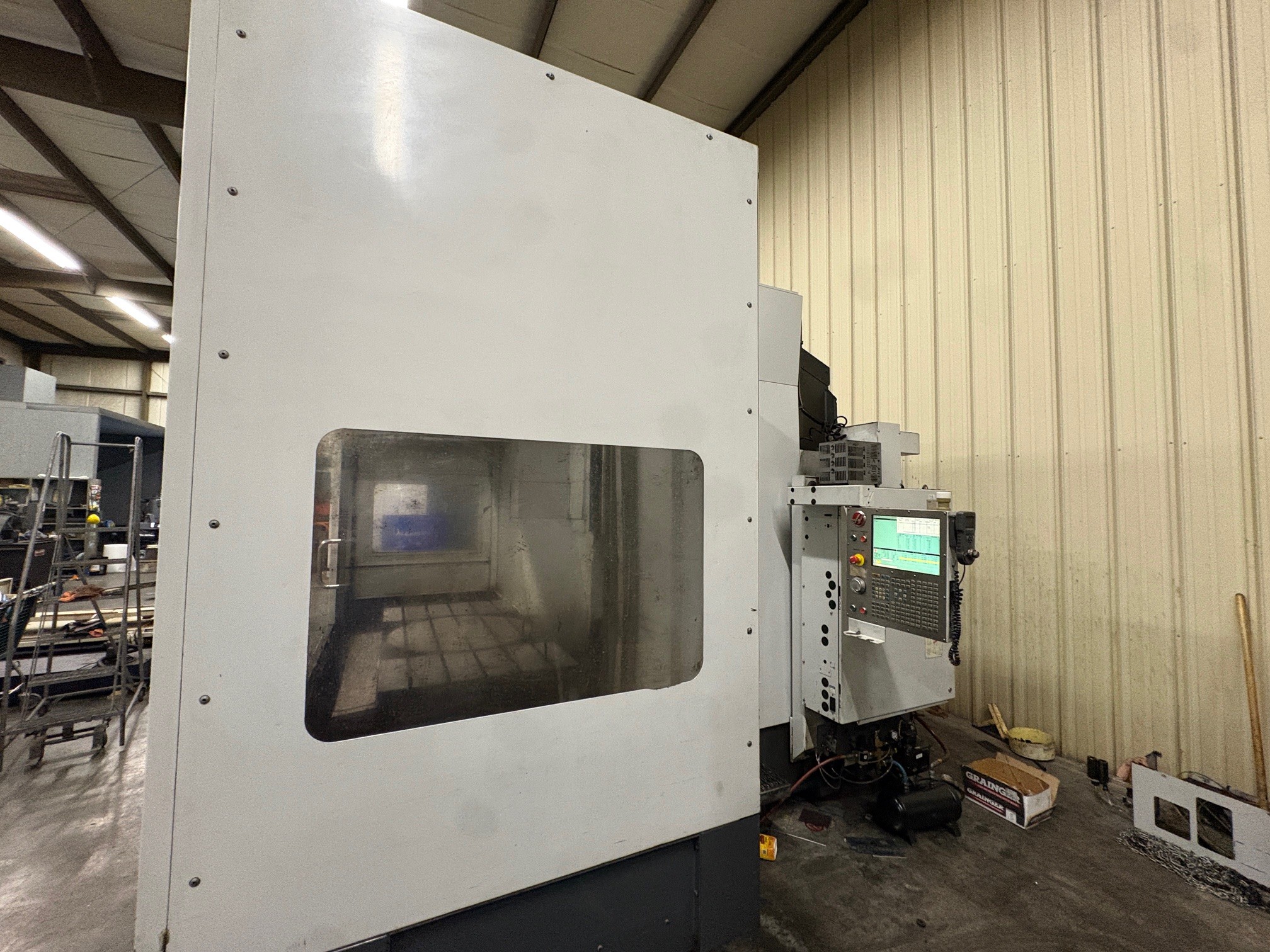

UD100645: Haas EC-1600

Haas EC-1600, Horizontal Machining Center, 64" x 50" Travels, B-Axis, 50-Taper, 6,000 RPM, Gearbox, Swing Arm ATC, S/N 2053862, 2012 Stock# UD100645

---

Travels:
X-Axis: 64"
Y-Axis: 50"
Z-Axis: 32"

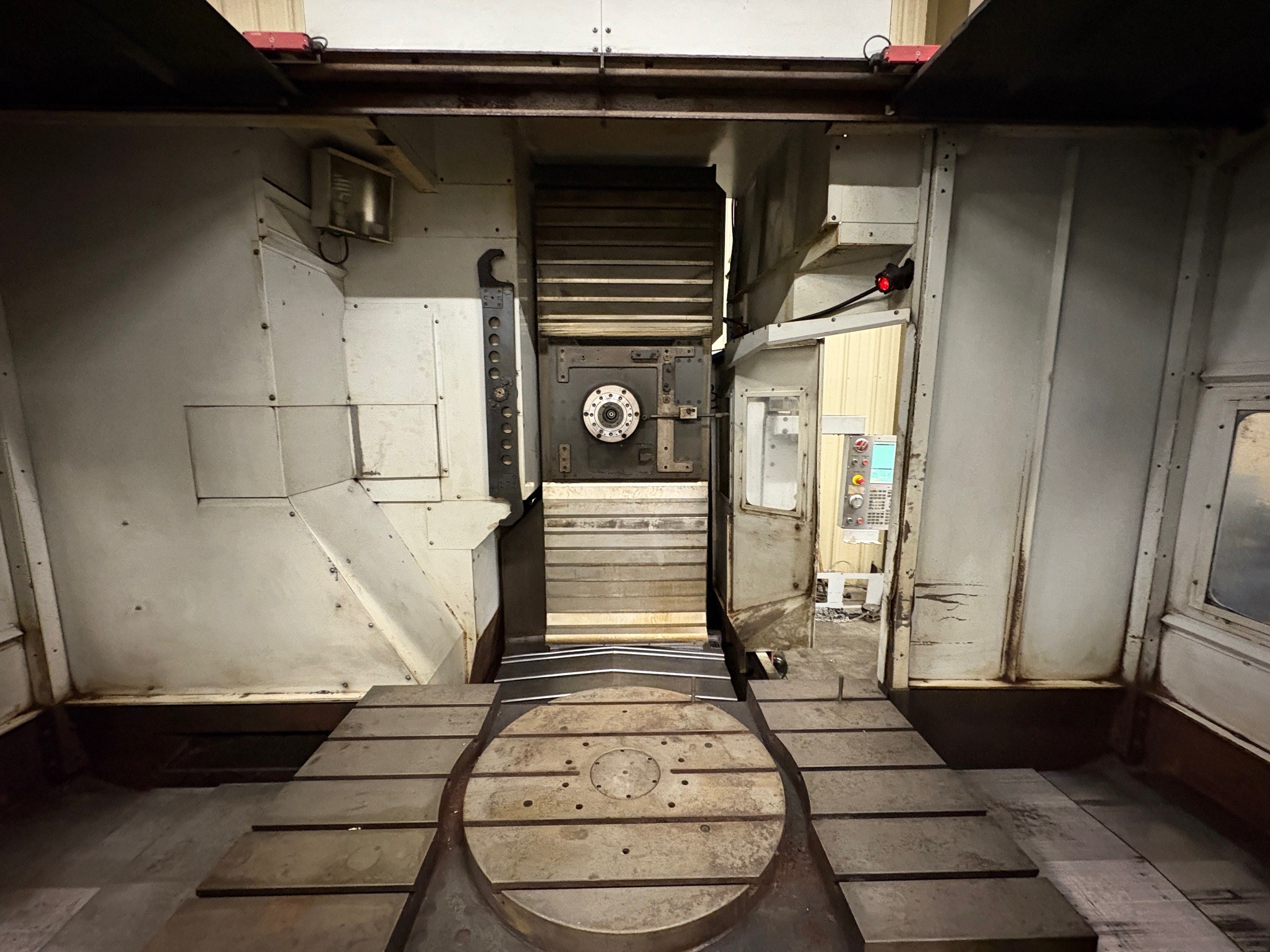

Table:

Length: 64"
Width: 36"
Max. weight on table (evenly distributed): 10,000 lb

Spindle:

Max. Rating: 30 HP
Max. Speed: 6000 RPM
Max. Torque: 450 ft-lb @5,000 RPM
Drive system: 2-speed geared head
Taper: CT 50

4th Axis Platter diameter: 30"

Feedrates:

Rapids on X,Y & Z: 540 in/min
Max. cutting: 500 in/min

Tool Changer:

Side Mount Type Capacity: 30+1
Max Tool Diameter (adjacent empty): 10"
Max Tool Diameter (full): 4"
Max Tool Diameter (from gage line): 20"
Max Tool Weight: 30 lb

General:

Coolant capacity: 95 gal
Voltage: 230V/3 Ph
Weight: 30,000 Lbs.

Note: New factory spindle installed 2025.
