UD100614: Kao Ming KMR-1250DH

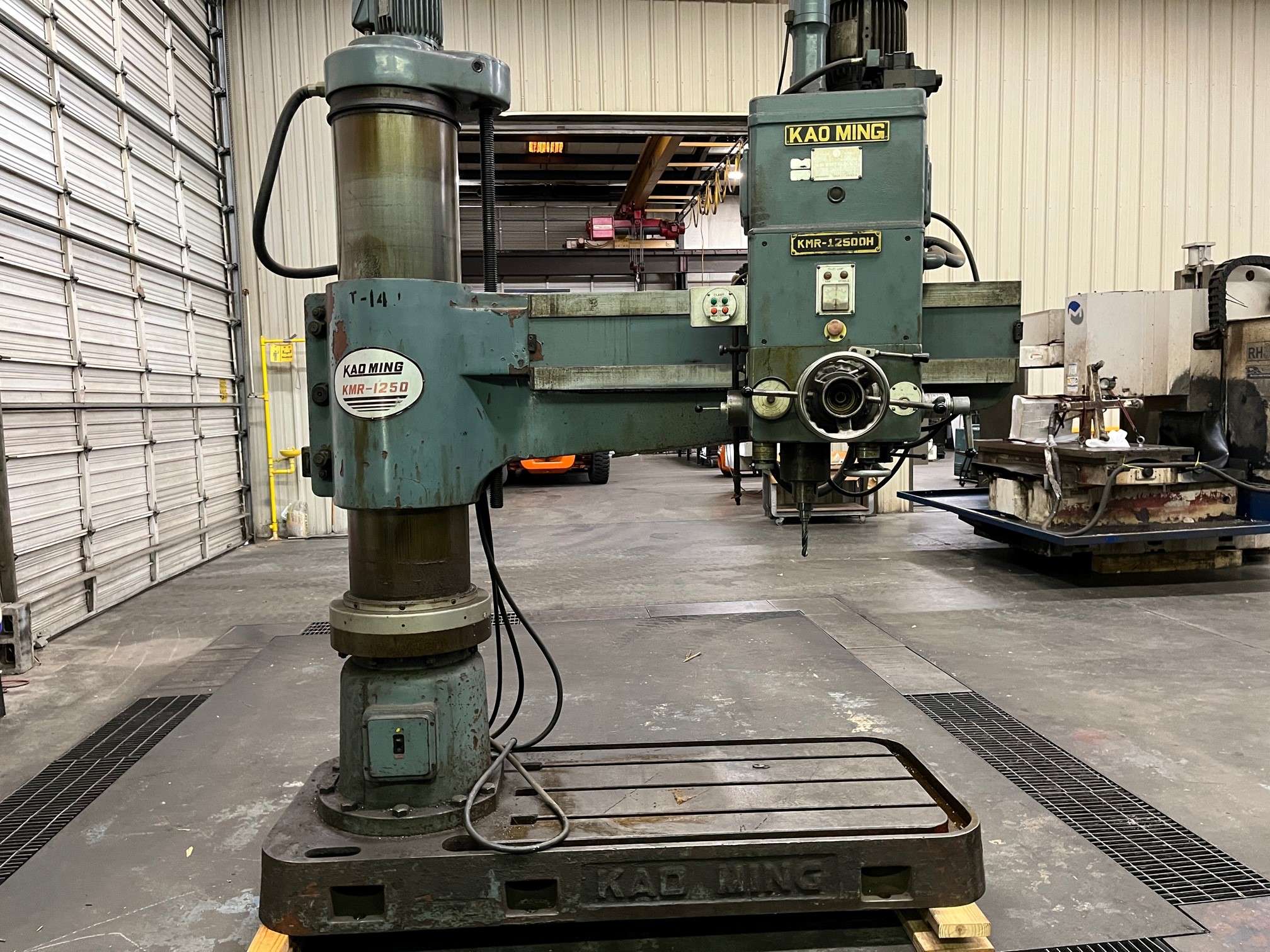

Kao Ming KMR-1250DH, Radial Arm Drill, S/N 1814 (1985) Stock# UD100614

---

Specifications:

Column diameter : 13-3/4"
Max distance, face of column to centerline of spindle: 49-1/4"
Min distance, face of column to centerline of spindle: 14-1/8"
Max distance, vertical arm travel: 27-1/2"
Max distance, face of spindle nose to base: 54-3/4"
Spindle horsepower: 5 HP
Spindle speeds (12): 30 to 1,580 RPM
Spindle feeds (12: .0025 to .045 IPR
Spindle quill feed: 11-3/4"
Spindle quill diameter: 4-1/8"
Taper in spindle: #5 Morse
Working surface of base: 32" x 54"
Floor space: 45" x 92"
Weight: 7,700 lbs
