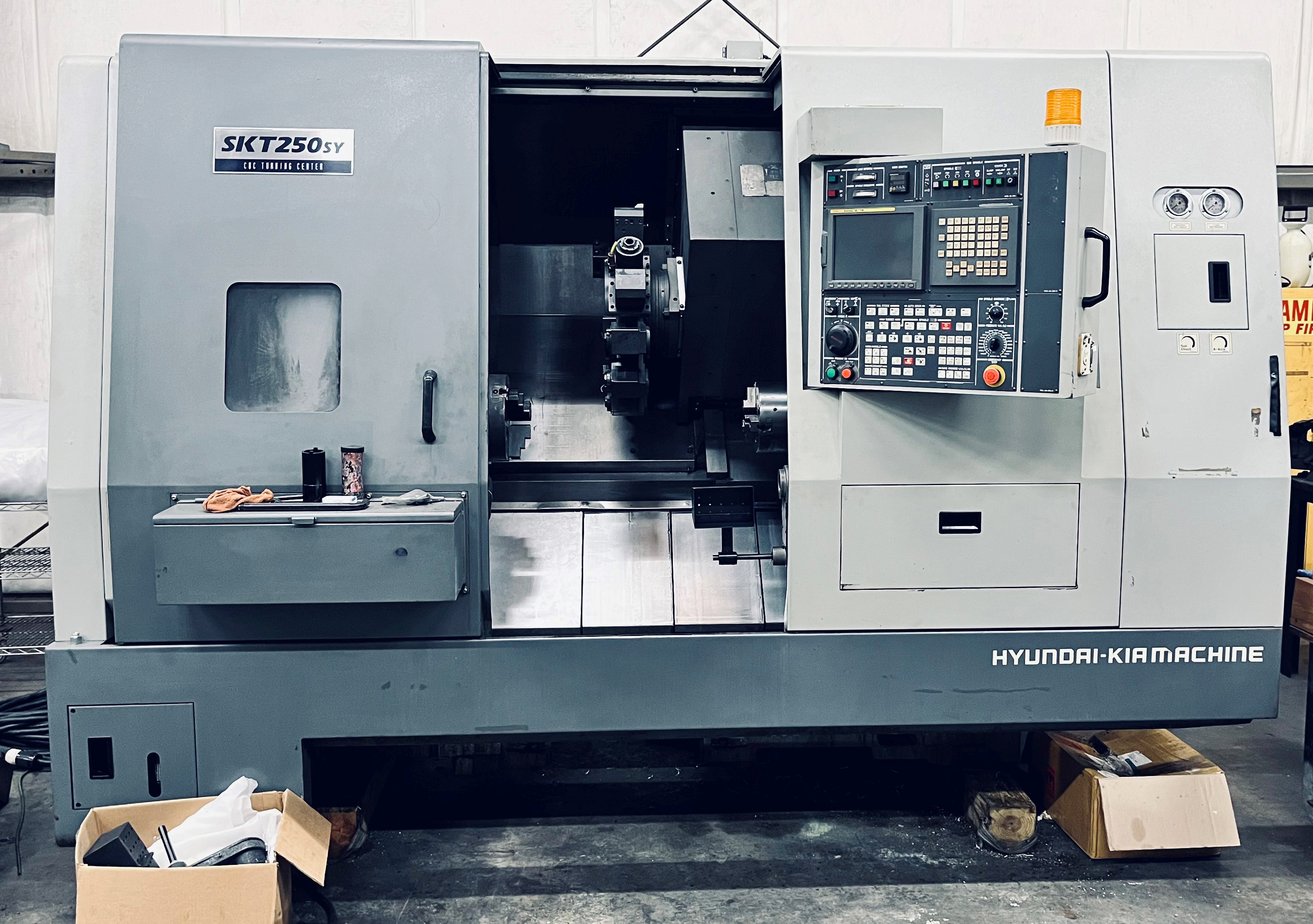

UD100613: Hyundai WIA SKT250SY

Hyundai WIA SKT250SY, FANUC 18i-TB, Box way, Twin Spindle, Milling & Turning Center, Y-axis, S/N SKT250SY0008, 2006 Stock# UD100613

---

Specifications:

Capacity:

Swing over bed: 24.4"
Swing over crosslide: 19.3"
Maximum distance between spindles: 24.8"
Maximum turn diameter: 16.14"
Maximum turn length: 27.55"

Spindle:
Bar capacity (3.740" hole): 3"
Main spindle speed: 3,500 RPM

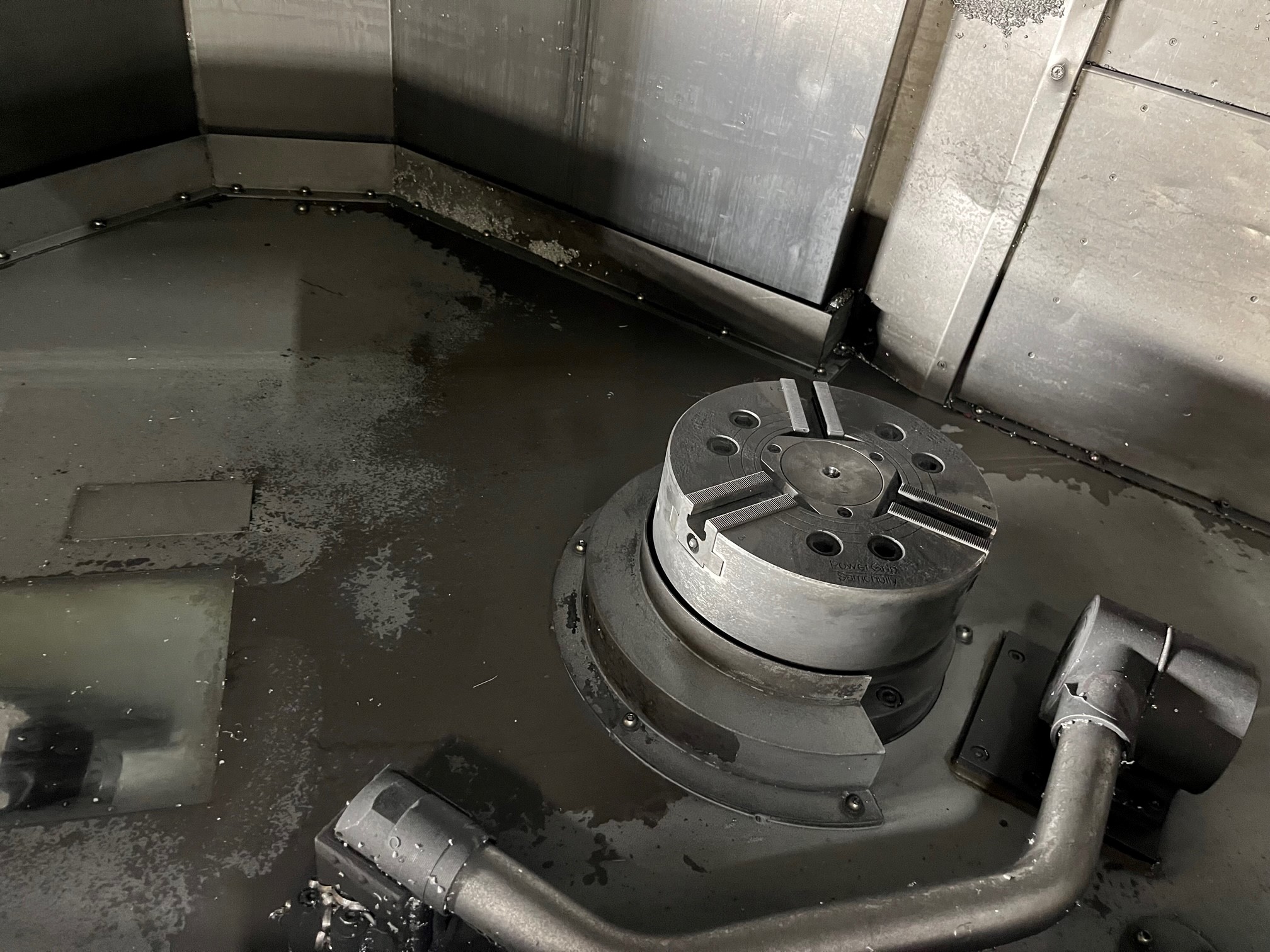

Sub spindle speed: 6,000 RPM
Main spindle motor: 30 HP
Sub spindle motor: 10 HP
Main spindle nose: A2-8

Travels and Rapids:
C-axis: Main & Sub
Y-axis travel: 4.33", +/- 2.17"
B-axis travel of sub-spindle: 27.55"
X-axis travel: 8.27"
Z-axis travel: 21.7"
X & Z-axis rapid traverse rate: 945 IPM

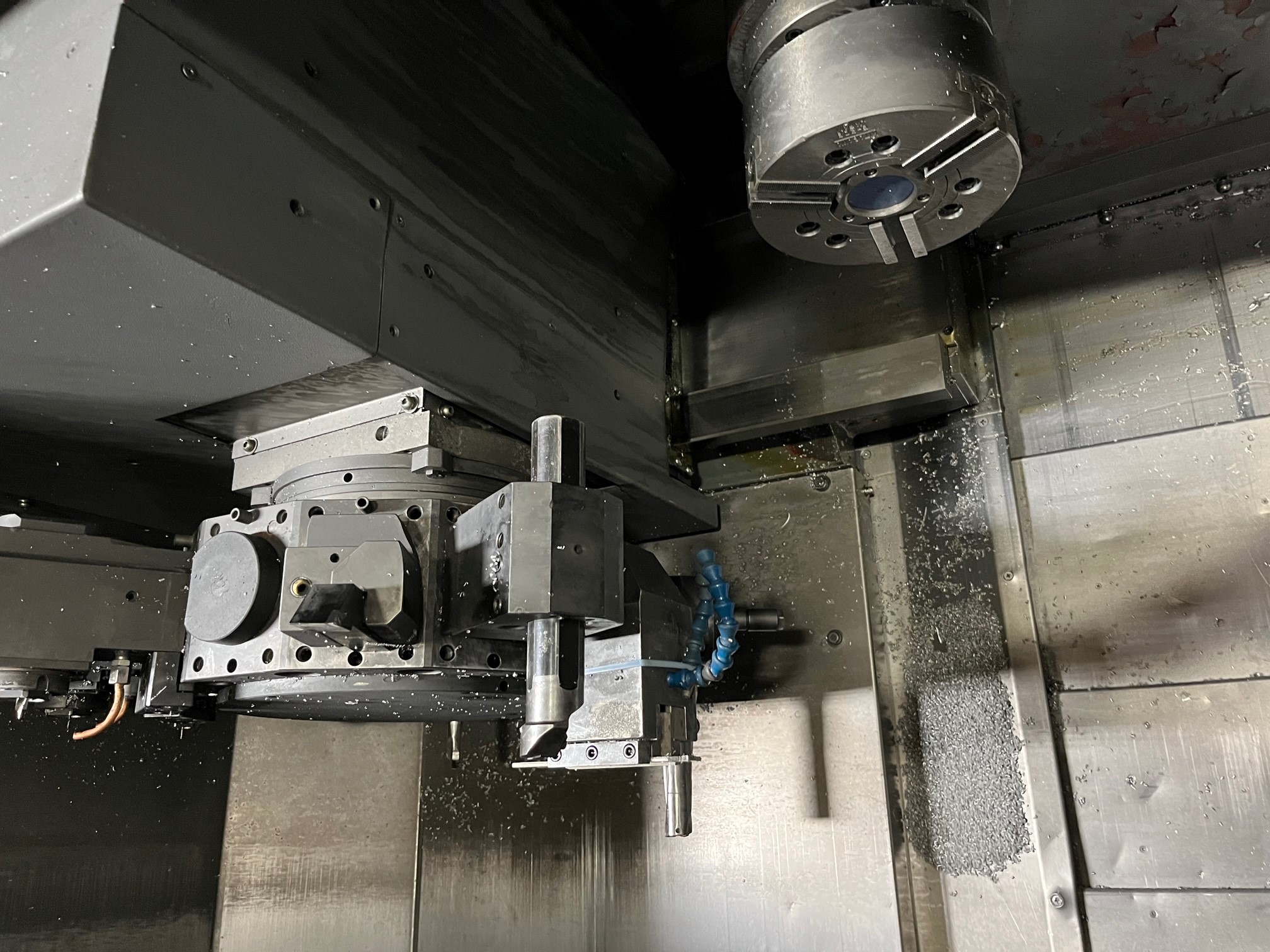

Turret:
Number of tools: 12
Tool type: VDI
Live tool HP: 7.5 HP
Live tool speeds: 4,000 RPM

General:
Coolant tank: 52 gallons
Floor space (Length x Width x Height): 127" x 78" x 86"
Machine weight: 14,500 lbs.
Full current load: 56 A
Voltage: 220 V, 3 Phase
