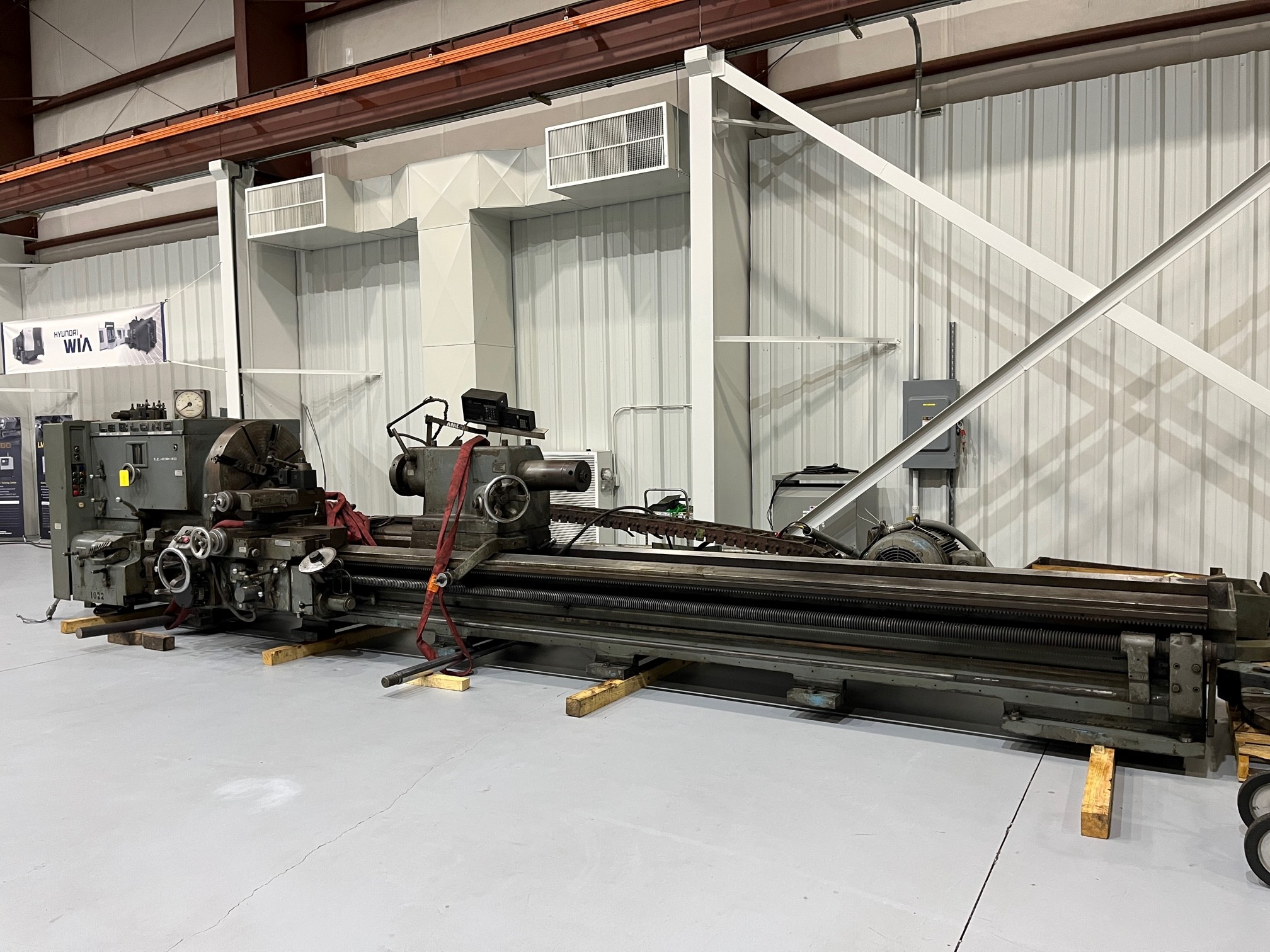

UD100586: Leblond 4025NK

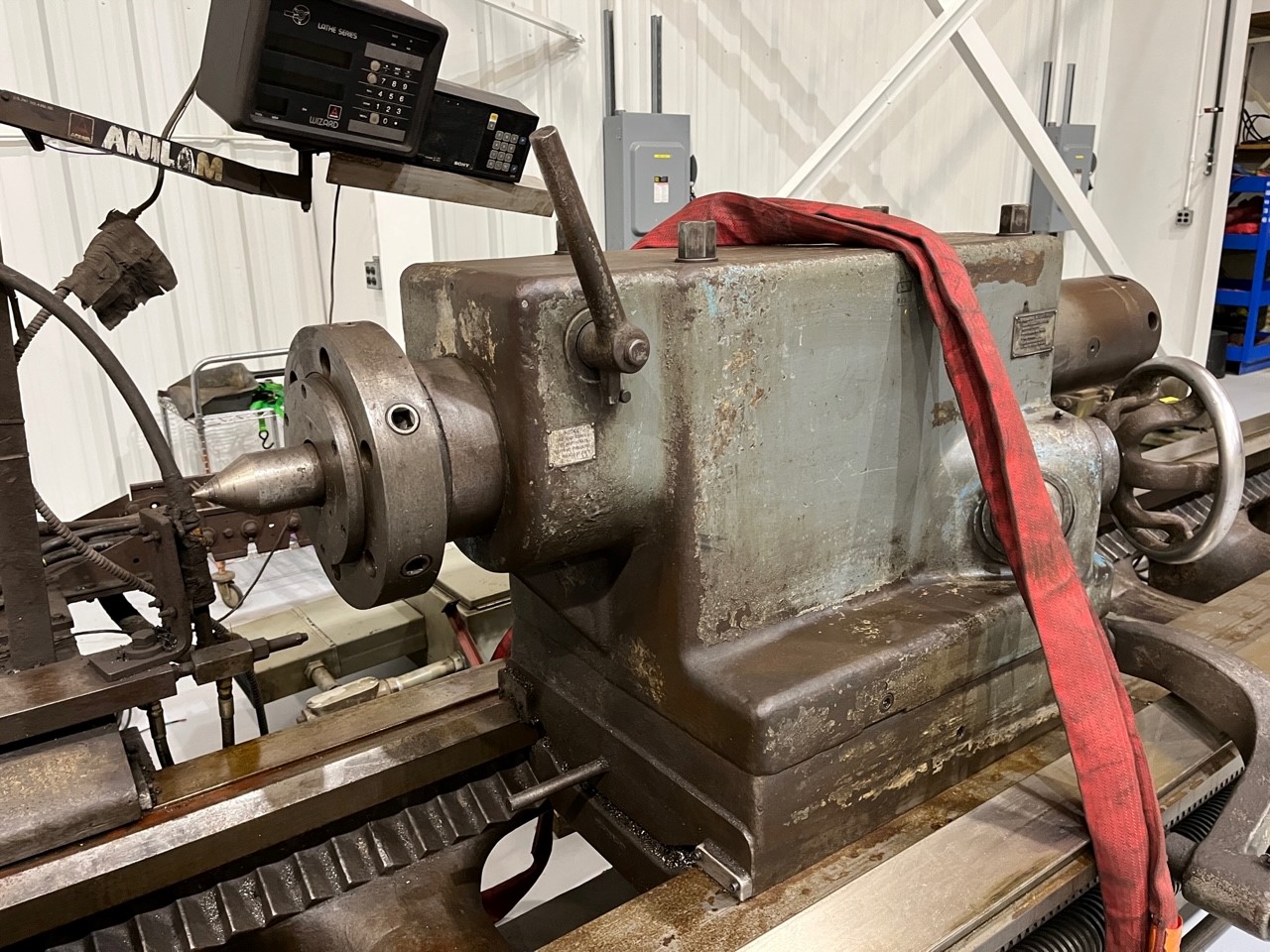

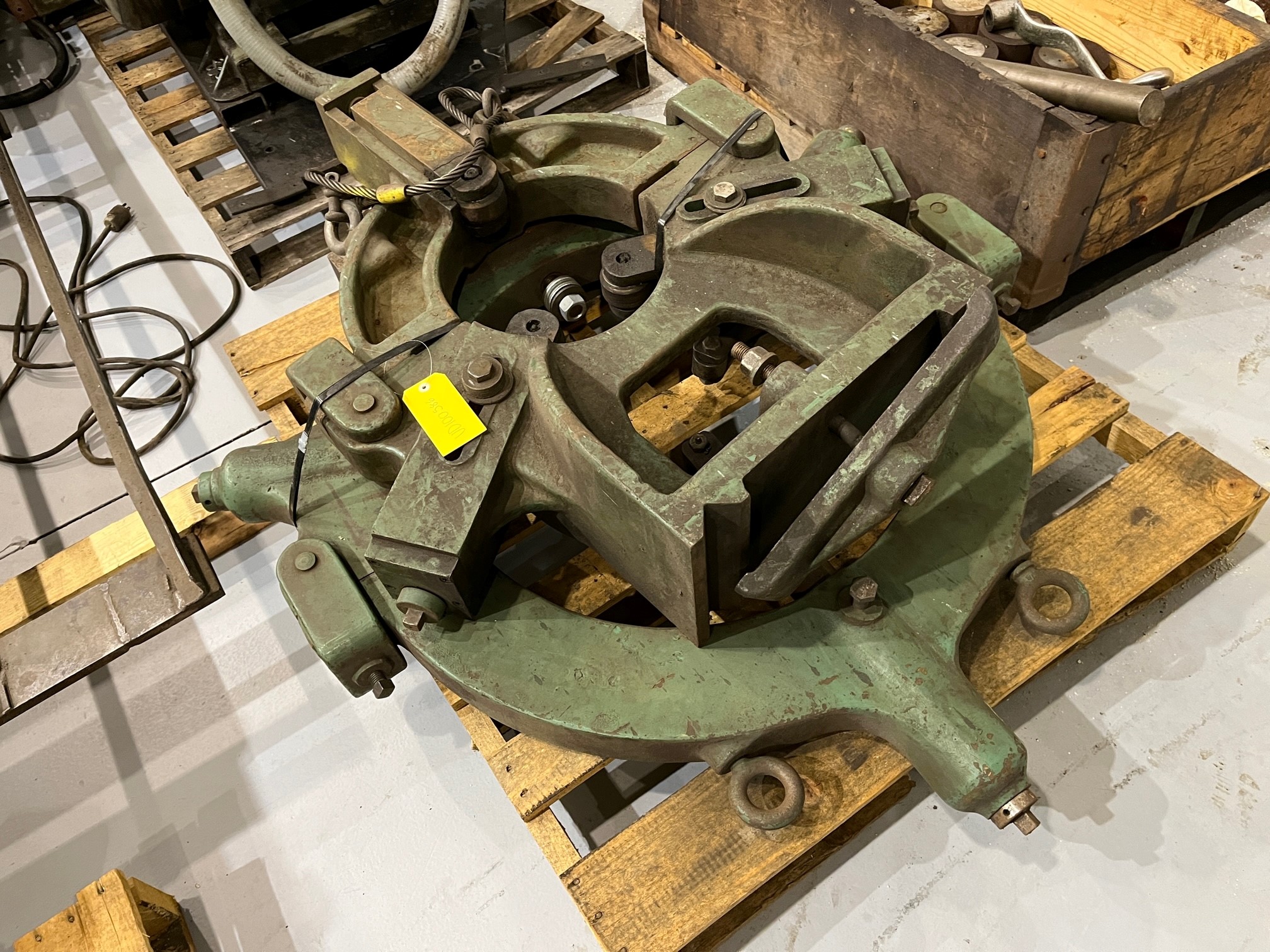

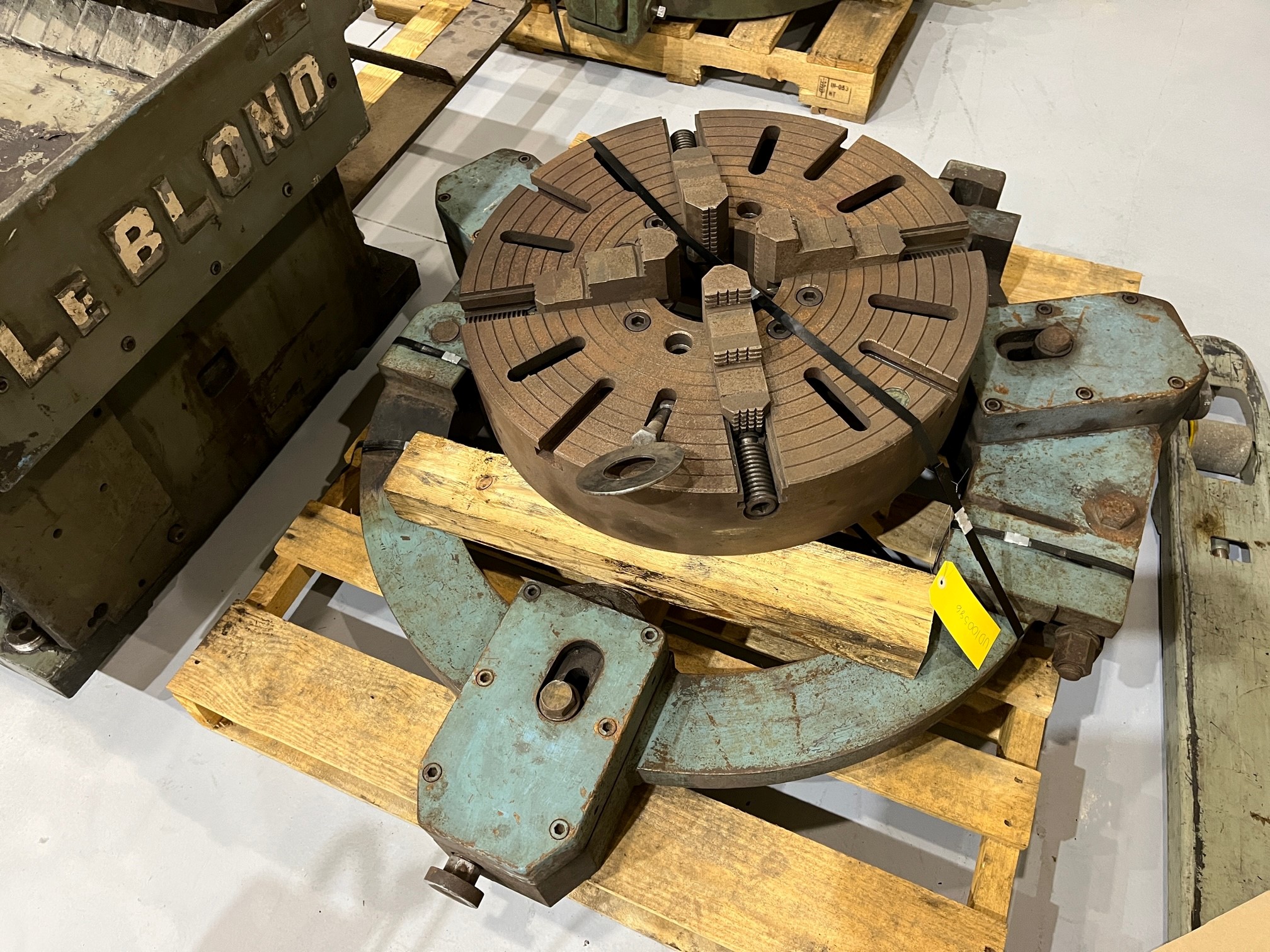

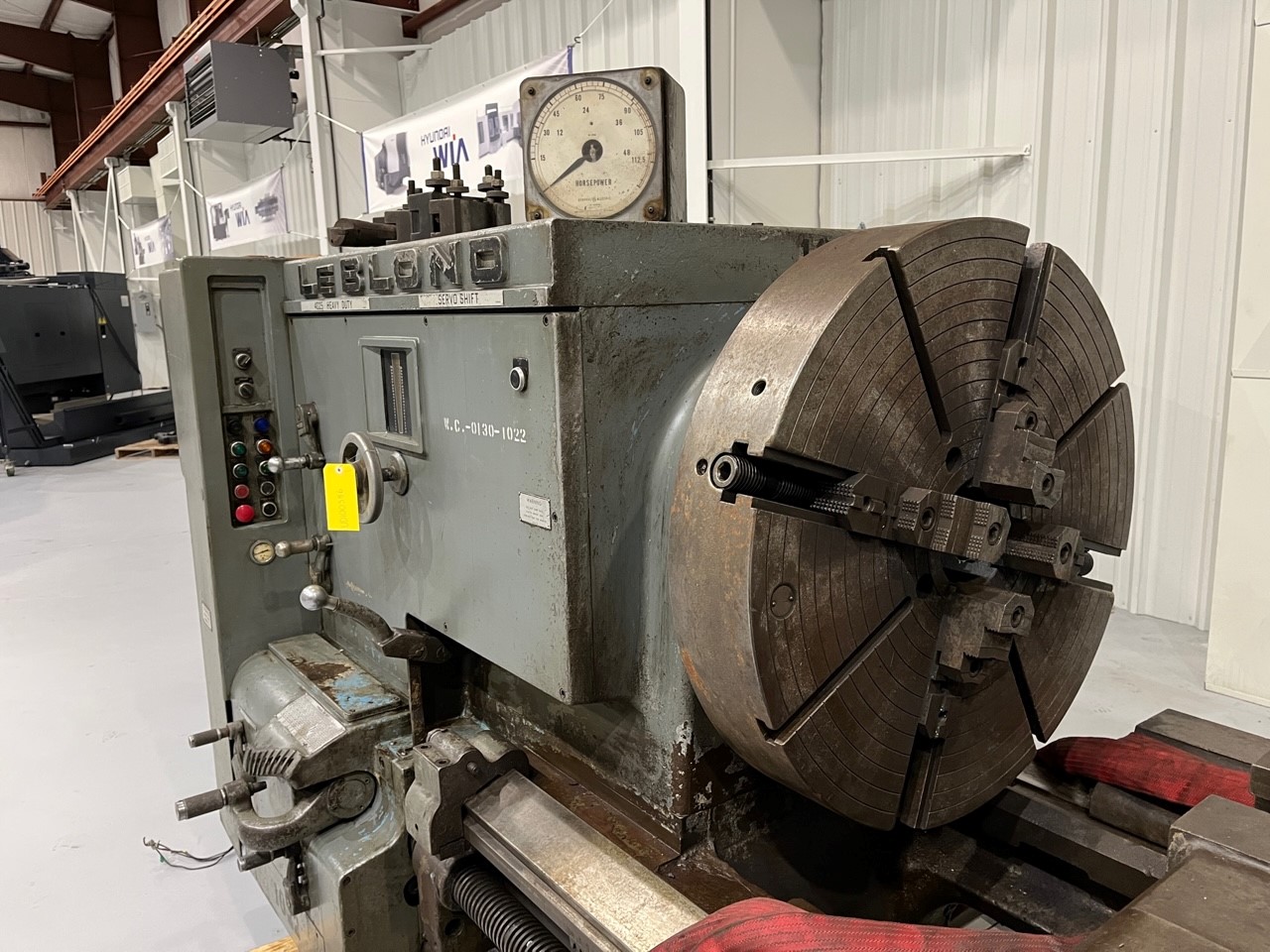

Leblond 4025NK, 40" x 204", 5-600 RPM, 32" 4 jaw, Live quill tailstock for chuck, (3) steady rest 12"-26", S/N 3NK876 Stock# UD100586

---

Specifications:

Swing over bed ways : 40"
Swing over cross slide : 25"
Distance between centers (17') : 204"
Bed width : 34"
Bed depth : 26"
Spindle mount : 11" A1
Spindle center to floor : 44"
Hole thru spindle : 3.062"
Spindle RPM (36 speeds) : 5.4 to 600 RPM
Threads per inch : 3/4" to 46 TPI
Feeds : .004" to .250" IPR
Tailstock, quill diameter : 8"
Tailstock, quill taper : #6
Tailstock, quill travel : 18"
Tailstock, quill taper : #6 MT
Tailstock, quill chuck mount : 11" A1
Main motor horsepower : 75 HP
Electrics - 220/440 : 440 volt (wired)
Floor space (l x w x h) : 355' x 90" x 78"
Weight : 43,000 lbs.
