Kitamura Mycenter-3020G
Vertical Machining Center
Overview
When maximum production is paramount, the Mycenter-3020G Sparkchanger vertical machining center delivers the combination of a high-speed 180-degree rotating pallet changer and lightning-quick tool changes.
Machine Features
- Table Size: 19.7" x 33.9"; 2-Station Automatic Pallet Changer
- Travel (X, Y, Z): 30" x 20.1" x 20.1"
- Spindle Taper: NST No. 40
- Spindle Speed: 20,000
- Tool Storage Capacity: 30 Pcs.
- Tool Change Time (T-T/C-C): 2.4 Sec. /4.6 Sec. Minimum
- Rapid Feed (X,Y,Z): 50m/min (1,969ipm) x 36m/min (1,417ipm)
- Power Requirement: 30KVA, 200v AC, 3 Phase

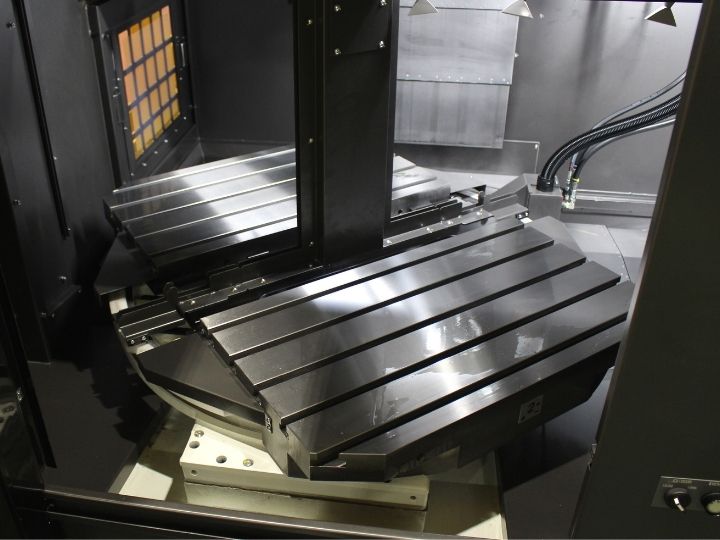

- 80 degree rotating 2-station APC for high production requirements
- Positioning Accuracy: +-0.000079" Full Stroke,
- Repeatability +-0.000039"
- Rigid Meehanite casting with solid box ways on X & Y axes
- High torque 20HP AC, 20,000 rpm 4-steap gear driven, dual contact spindle
- Plumbed and ready for coolant thru the spindle - can be added in field
- Arumatik-Mi CNC with High speed, high accuracy control/8,190 block look ahead speeds
- Flexibility to add 4th or 5th axis interface in the field
Specifications
| Table Size | 19.7 x 33.9 in. |
| Magazine | 30 |
| Spindle RPM | 20,000 |
| Spindle Taper | NST 40 |
| Spindle HP | 20 |
| Rapids(X) | 1969 |
| Rapids(Y) | 1969 |
| Rapids(Z) | 1417 |
| Travel(X) | 30 |
| Travel(Y) | 20.1 |
| Travel(Z) | 20.1 |
