Hyundai WIA i-CUT400TD
Vertical Machining Center
Overview
The i-CUT400TD maximizes productive efficiency improvement of mass production parts such as automobile, medical, and Information Technology parts. I-CUT400TD is designed by Hyundai WIA with years of expertise and the latest technology, maximizes productivity while maintaining rigidity and accuracy.
Machine Features
- Hyundai Wia FANUC i-Series Smart Plus control
- 12,000 RPM direct-driven spindle
- 17.4 HP (13 kW) spindle motor
- BBT No. 30 spindle taper
- Rapid traverse rates: 1,890 IPM (48 m/min) on X, Y, and Z axes
- Linear roller guideway on Z-axis
- Automatic tool changer with 14 tools (21 tools optional)

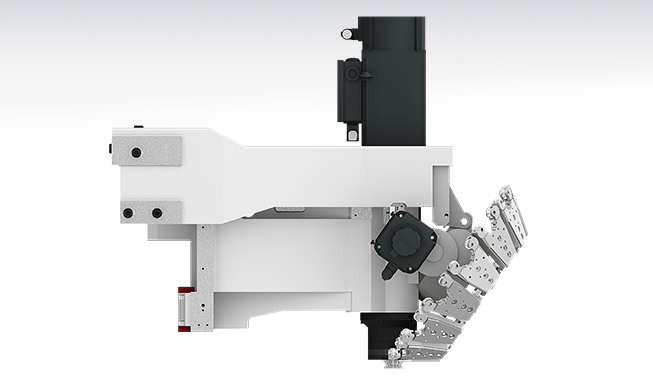

- Servo-driven armless ATC unit
- Double-anchored, pre-tensioned ball screws
- 290 PSI through-spindle coolant
- Remote manual pulse generator
- Spindle speed override range: 0 to 150 percent in 10 percent increments
- Massive Meehanite cast iron machine base
- Rigid tapping capability
- Program and data protection key switch
- Metered piston distributor lubrication system
- Slanted telescopic way covers
- Flood coolant system with large separate coolant tank
- Single-color tower signal light
- Full enclosure splash guard
Specifications
| Table Size | 15.7 x 25.6 in. |
| Magazine | 14 |
| Spindle RPM | 12,000 |
| Spindle Taper | BBT 30 |
| Spindle HP | 17.4 |
| Rapids(X) | 1890 |
| Rapids(Y) | 1890 |
| Rapids(Z) | 1890 |
| Travel(X) | 20.5 |
| Travel(Y) | 15.7 |
| Travel(Z) | 13 |
