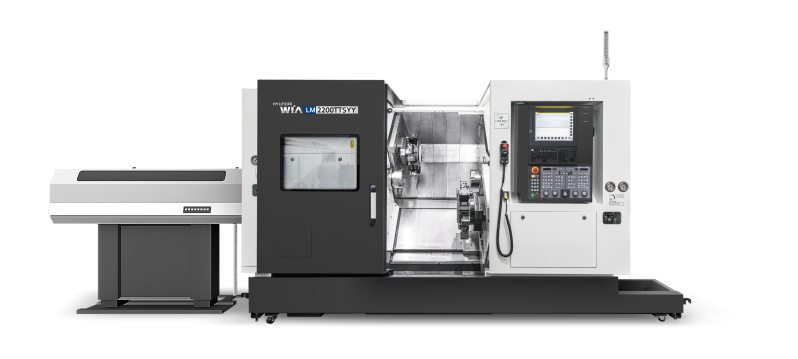

Hyundai WIA LM2200TTSYY
Horizontal Turning Center
Overview
The Hyundai WIA LM2200TTSYY is a high-performance multitasking turning center designed to complete complex parts in a single setup. Featuring twin spindles, twin turrets, and dual Y-axis capability, it delivers maximum productivity and reduced cycle times.
Machine Features
- Y-axis on both turrets (not just upper)
- Enables simultaneous top & bottom milling
- Balanced cutting forces
- Faster cycle times + more complex part capability
- Main + sub spindle for part transfer
- Front and back machining in one cycle
- Eliminates second operations and handling

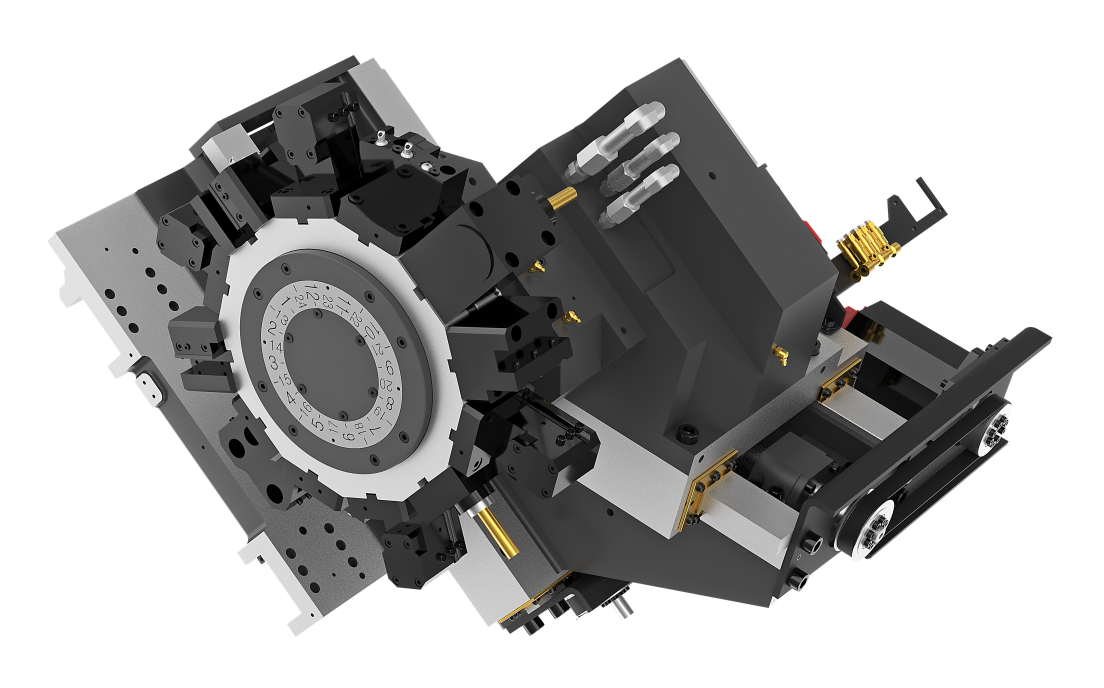

- Two turrets cutting simultaneously
- Live tooling on both turrets
- Reduced cycle time and increased output
- Turning + milling + drilling + tapping
- C-axis control on both spindles
- 5,000 RPM live tooling
- Complete parts in one setup

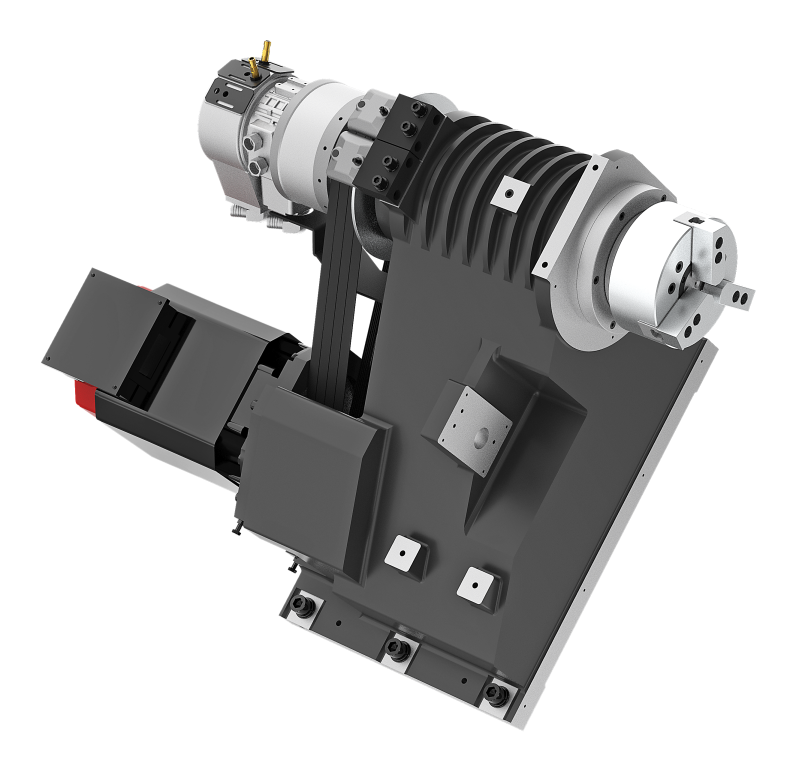

- One-piece 45 degree slant bed
- Box ways (X/Y) for heavy cutting
- Roller guides (Z) for speed
- Superior surface finish and stability
Request a Quote
Click to Request QuoteSpecifications
| Max Turn Dia | 9.06 in. |
| Max Turn Len | 9.06 in. |
| Chuck Size | 8 in. |
| Spindle RPM | 4,500 |
| Spindle HP | 25 |
| Rapids(X) | 787 |
| Rapids(Y) | 394 |
| Rapids(Z) | 1417 |
| Travel(X) | 6.5 |
| No of Tools | 24 |
