Hyundai WIA KF7600L
Vertical Machining Center
Overview
The KF7600L is designed by HYUNDAI WIA with years of experience and the latest technology, maximizes productivity and provides stiffness and rigidity. KF7600L offers Hyundai value at an economical and affordable price, and provides high productivity and profitability and matches typical of complex, contoured geometry associated with die/mold and medical production
Machine Features
- Hyundai Wia FANUC Smart Plus control
- 24.8 HP spindle motor, S3 15 percent duty
- 12,000 RPM direct-driven spindle (8,000 RPM optional)
- Table size: 88.6 in x 29.9 in
- Table load capacity: 3,968 lb
- Spindle oil chiller system (8,000 RPM option)
- BBT No. 40 spindle taper
- Rapid traverse rates: X and Y axes 1,181 IPM, Z-axis 945 IPM
- Large linear roller guideways with roller bearings
- Automatic tool changer with 30 tools (40 tools optional)

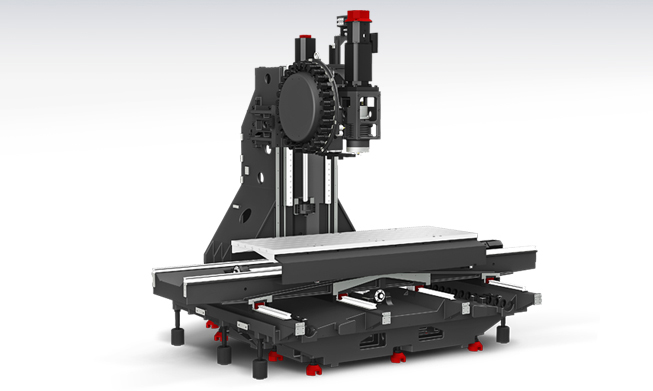

- Y-shaped ribbed column structure
- Metal plate coupling on all axes
- 290 PSI through-spindle coolant
- Remote manual pulse generator
- Spindle speed override range: 0 to 150 percent in 10 percent increments
- Massive Meehanite cast iron machine base
- Double pre-tensioned ball screws
- Rigid tapping capability
- Program and data protection key switch

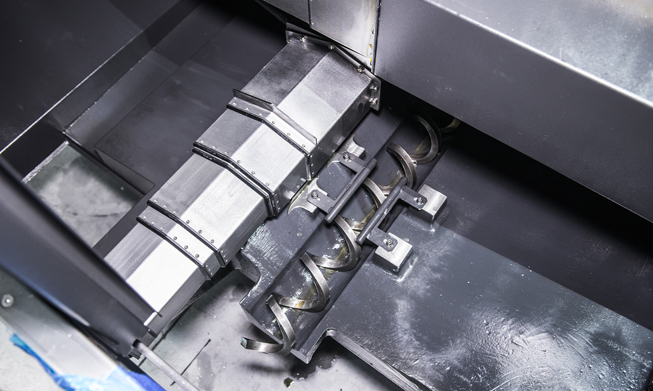

- Slanted telescopic way covers
- Chip conveyor with 38 in discharge height
- Flood coolant system with large separate coolant tank
- Three-color tower signal light
- Full enclosure splash guard
- 15 in touch-type monitor
Specifications
| Table Size | 88.6 x 29.9 in. |
| Magazine | 30 |
| Spindle RPM | 12,000 |
| Spindle Taper | BVC 40 |
| Spindle HP | 24.8 |
| Spindle Torque | 87 |
| Rapids(X) | 1181 |
| Rapids(Y) | 1181 |
| Rapids(Z) | 945 |
| Travel(X) | 82.7 |
| Travel(Y) | 29.9 |
| Travel(Z) | 25 |
