Hyundai WIA KF6
Vertical Machining Center
Overview
The KF6 is designed by HYUNDAI WIA with years of experience and the latest technology, maximizes productivity and provides stiffness and rigidity. KF6 offers Hyundai value at an economical and affordable price, and provides high productivity and profitability and matches typical of complex, contoured geometry associated with die/mold and medical production
Machine Features
- Hyundai Wia FANUC Smart Plus control
- 25 HP (18.5 kW) spindle motor
- 12,000 RPM direct-driven spindle
- Table size: 59.1 in x 26.4 in (1,500 x 670 mm)
- Table load capacity: 2,866 lb (1,300 kg)
- Spindle oil chiller system (8,000 RPM spindle optional)
- Big Plus dual-contact spindle taper (BCV No. 40)
- Rapid traverse rates: X and Y axes 1,417 IPM (36 m/min), Z-axis 1,181 IPM (30 m/min)

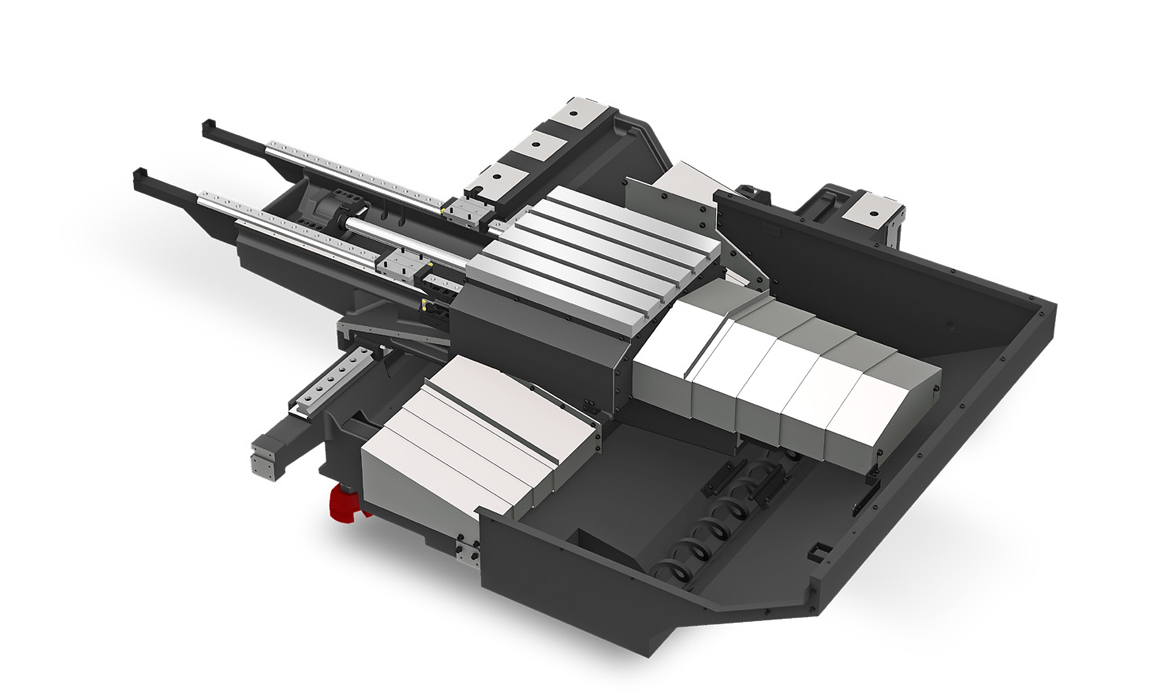

- Large linear roller guideways with roller bearings
- Automatic tool changer with 30 tools (40 or 60 tools optional)
- Y-shaped ribbed column structure
- Embedded operating panel
- 290 PSI through-spindle coolant
- Remote manual pulse generator
- Spindle speed override range: 0 to 200 percent in 10 percent increments
- Pre-tensioned ball screws
- Rigid tapping capability
- Program and data protection key switch
- Slanted telescopic way covers
- Chip conveyor with 38 in discharge height
- Flood coolant system with large separate coolant tank
- Three-color tower signal light
- Full enclosure splash guard
- 15 in touch-type monitor
Request a Quote
Click to Request QuoteSpecifications
| Table Size | 59.1 x 26.4 in. |
| Magazine | 30 |
| Spindle RPM | 12,000 |
| Spindle Taper | BCV 40 |
| Spindle HP | 25 |
| Spindle Torque | 87 |
| Rapids(X) | 1417 |
| Rapids(Y) | 1417 |
| Rapids(Z) | 1181 |
| Travel(X) | 51.2 |
| Travel(Y) | 26.4 |
| Travel(Z) | 25 |
