Hyundai WIA KF5
Vertical Machining Center
Overview
The KF5 is designed by HYUNDAI WIA with years of experience and the latest technology, maximizes productivity and provides stiffness and rigidity. KF5 offers Hyundai value at an economical and affordable price, and provides high productivity and profitability and matches typical of complex, contoured geometry associated with die/mold and medical production
Machine Features
- Hyundai Wia Fanuc - Smart Plus Control
- Powerful 25 HP (18.5 kW) spindle motor
- 12,000 RPM Direct Driven Spindle
- 51.2" x 22.0" Table Size
- 2,205 lbs Load Capacity
- Spindle Oil chiller system [8K Opt.]
- BCV # 40 taper (Big Plus)
- Fast 1,417 IPM X, Y and 1,181 IPM Z axis rapid traverse
- Large Linear Roller guide with roller bearings
- ATC 30 Tools [40/60T Opt.]

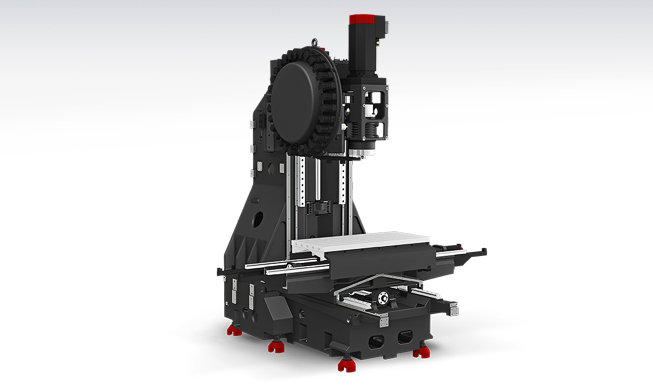

- "Y" shape ribbed column structure
- Embed operating panel
- 290 PSI through the spindle coolant
- Remote Manual Pulse Generator
- Spindle override 0% to 200% (10% Unit)
- Pre-Tensioned Ball screws
- Rigid tapping
- Program and data protection key switch
- Slanted telescopic way covers
- Chip Conveyor (38" discharge height)
- Flood coolant with large separate coolant tank
- 3 color tower signal light
- Full enclosure splash guard
- 15" Touch-type monitor
Specifications
| Table Size | 51.2 x 22.0 in. |
| Spindle RPM | 8,000 |
| Spindle Taper | BBT40 |
| Spindle HP | 25 |
| Spindle Torque | 191 |
| Rapids(X) | 1417 |
| Rapids(Y) | 1417 |
| Rapids(Z) | 1181 |
| Travel(X) | 41.3 |
| Travel(Y) | 22.0 |
| Travel(Z) | 20.1 |
| No of Tools | 30 |
