Hyundai WIA HS4000II
Horizontal Machining Center
Overview
The HS4000II is general purpose horizontal machining center enabling high-efficiency, continuous machining and mass production machining in various areas. HS4000II is equipped with Hyundai's latest spindle, ensuring high-speed and stable high- precision machining with a thick, high rigidity bed. As a result, this model achieves the highest level of speed and accuracy demanded of a horizontal machining center.
Machine Features
- FANUC 31i-B control

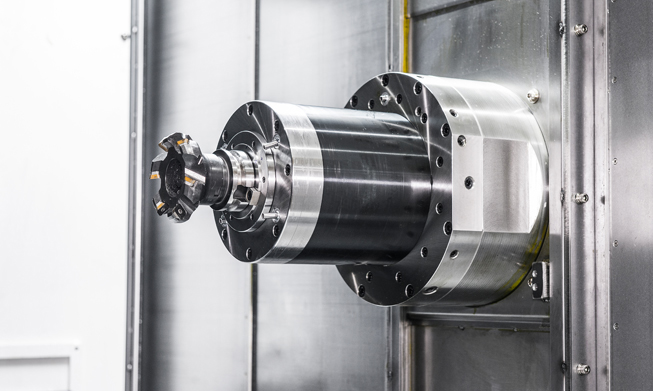

- 15,000 RPM built-in spindle
- 40.2 HP (30 kW) spindle motor, S3 15 and 25 percent duty
- Rapid traverse rates: 2,362 IPM on X, Y, and Z axes
- Large linear roller guideways
- Direct-turn pallet changer with two tapped pallets (T-slot optional)
- Servo motor driven double-arm ATC with 60 tools (40, 90, or 120 tools optional)
- Big Plus dual-contact spindle taper (BCV No. 40)
- High-precision spindle with angular contact ball bearings
- 1,015 PSI through-spindle coolant

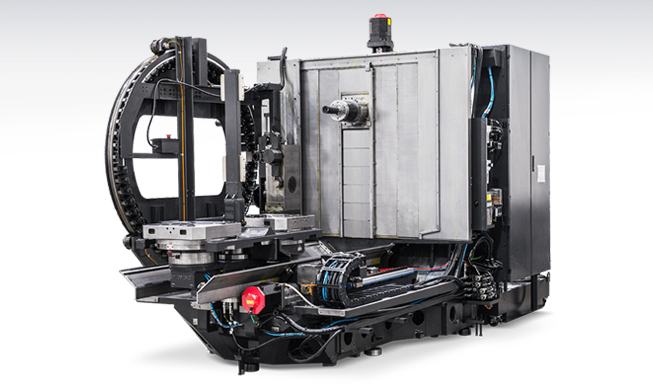

- Stair-stepped column design
- Air cleaning system for pallet placement
- Spindle speed override range: 0 to 150 percent in 10 percent increments
- Oil-jacket spindle cooler
- Massive cast iron machine base
- Servo motors mounted directly to ball screws via flexible couplings
- Pre-tensioned, double-anchored ball screws
- Qualified edge locators
- High-precision taper-cone pallet clamping system
- Pallet rotation at pallet loading station
- Program and data protection key switch
- Hydraulic oil cooler
- Slanted slide covers
- Chip conveyor with 38.2 in discharge height
- Flood coolant system with large separate coolant tank
- Three-color tower signal light
- Ball screw shaft cooling
Request a Quote
Click to Request QuoteSpecifications
| Table Size | 15.7 x 15.7 in. |
| Magazine | 60 |
| Spindle RPM | 15,000 |
| Spindle Taper | BCV 40 |
| Spindle HP | 40 |
| Spindle Torque | 169 |
| Rapids(X) | 2362 |
| Rapids(Y) | 2362 |
| Rapids(Z) | 2362 |
